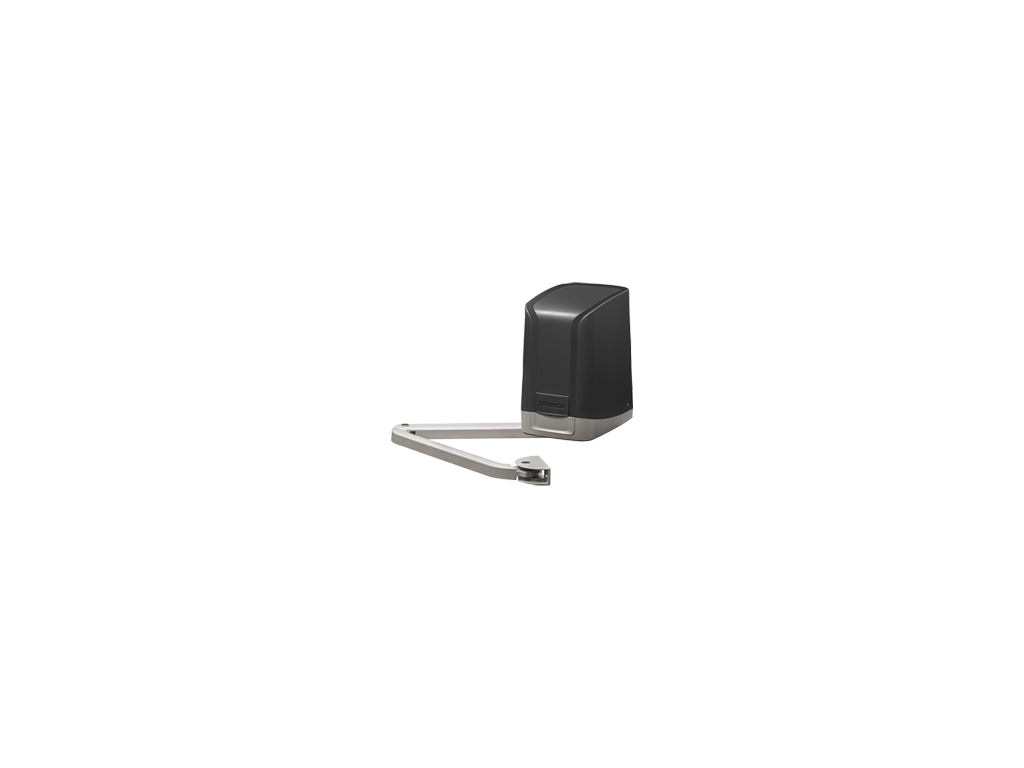

24 Vdc electromechanical operator for intensive use
24 Vdc
Up to 2.5 m per door leaf
Control unit that manages the encoder for maximum precision during the automation manoeuvring steps
24 Vdc | intensive use

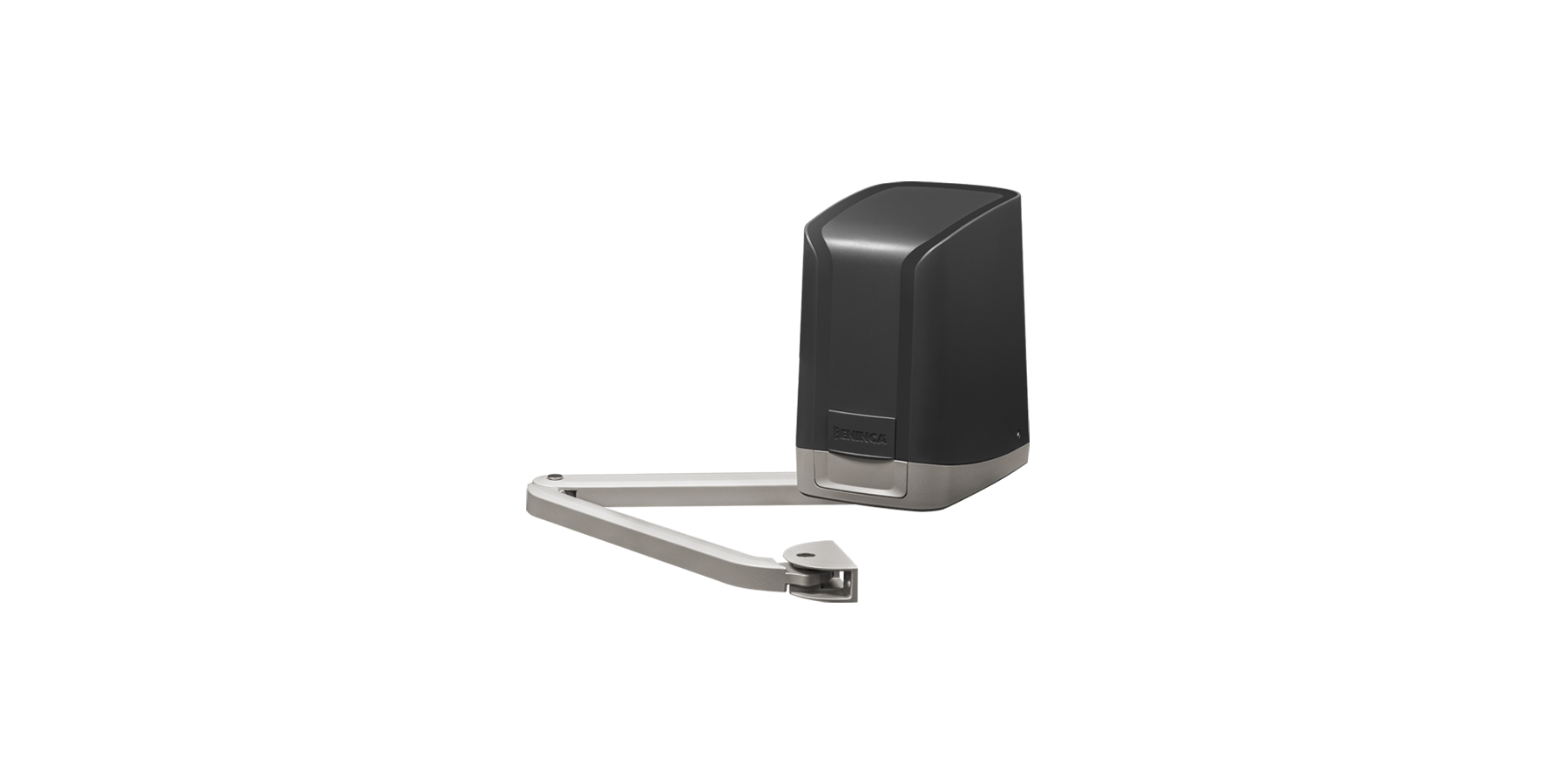

24 Vdc electromechanical operator for intensive use | Ideal for swing gates with large columns and leaf hinges up to 280 mm deep (just 170 mm wide) | The encoder guarantees maximum safety and precision while the gate is moving | Sturdy arm fitted with a closing lock that helps define the limit switch position during installation | Motor fixing bracket fitted with cable gland | Operation guaranteed even in the event of a power supply failure through batteries that integrate perfectly into the motor | Amperometric sensor obstacle detection system to prevent crushing | Option of adjustable flush release that allows opening from the outside in the event of a power supply failure
Arm not included

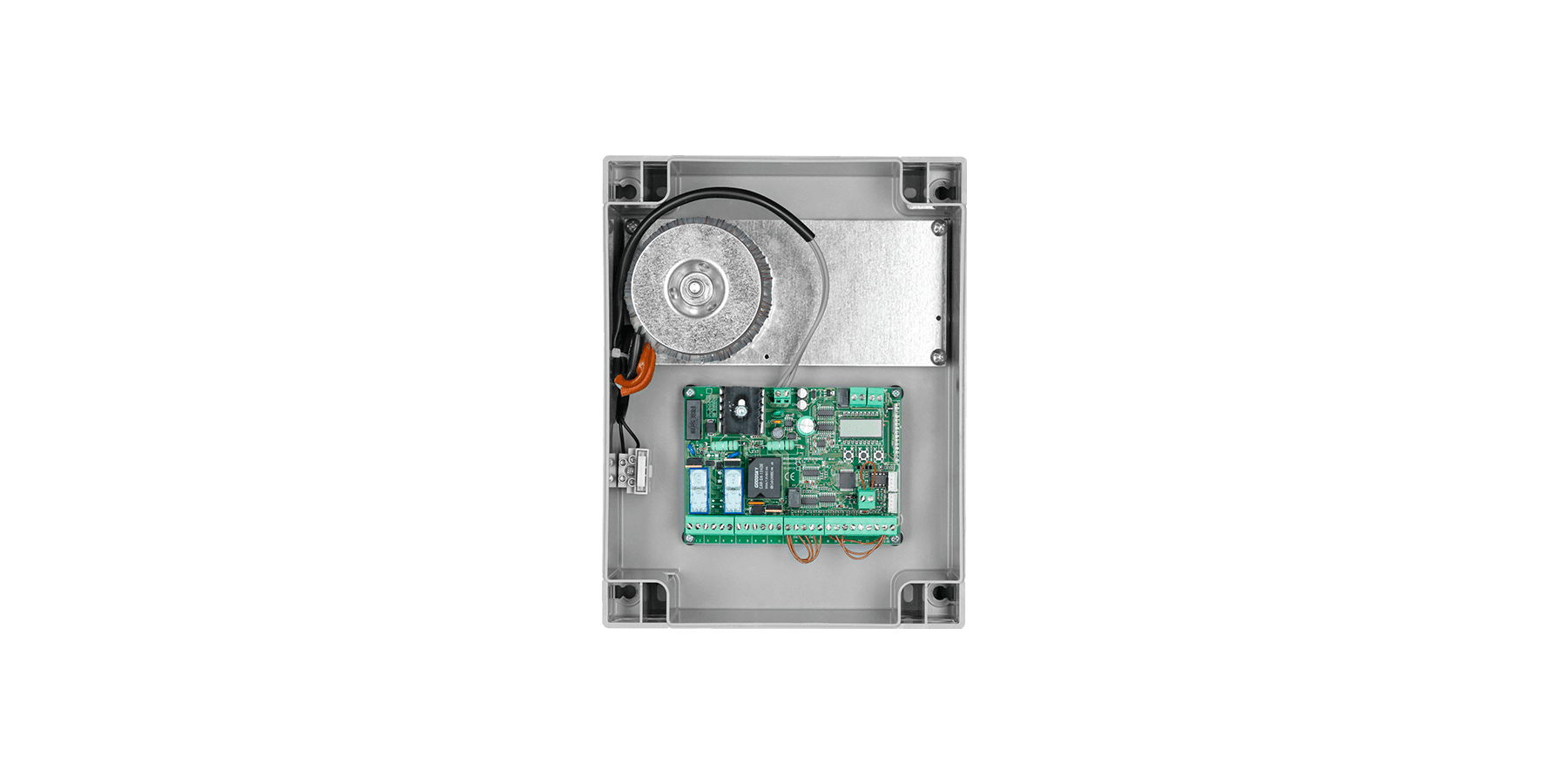

APPLICATION
1 or 2 actuators for swing gates, opposed sliding gates, and industrial folding doors with a maximum of 2 sections
CONTROL UNIT POWER SUPPLY
230 Vac - 50/60 Hz
MOTORS POWER SUPPLY
24 Vdc / 120 W + 120 W
MAIN FUNCTIONS
Integrated LCD display | Integrated 433.92 MHz 64-code receiver with 3 encoding systems (Advanced Rolling Code, Rolling Code, Fixed Code) | Removable terminal boards | Separate limit switch inputs for each motor | Open, close, and pedestrian inputs | Photocell inputs in opening-closing and in closing phases | Input for N.C. or 8K2 sensitive edge | Output for electric lock 12 Vdc | Output for configuration as gate open indicator, service light, second radio channel and photocell testing | Output for connecting flashing light | Autosetting of operating parameters | Separate electronic torque adjustment for each motor | Anti-crushing safety through amperometric detection and encoder management | Separate adjustable slowdowns for each motor in opening and closing phases | Advantouch system to configure parameters and manage radio transmitters | Number of maneuvers | Programming access password | Maintenance warning

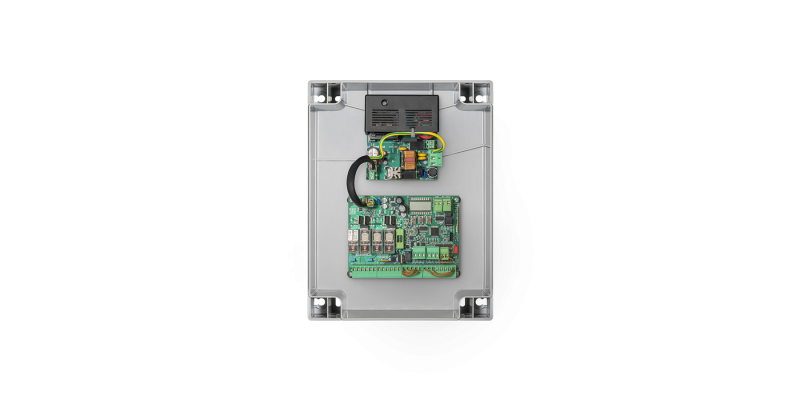

APPLICATION
1 or 2 actuators for swing gates, opposed sliding gates, and industrial folding doors with a maximum of 2 sections
CONTROL UNIT POWER SUPPLY
115 or 230 Vac (selectable) 50/60Hz
MOTORS POWER SUPPLY
24 Vdc / 240 W + 240 W
MAIN FUNCTIONS
Integrated LCD display | Integrated radio receiver 433.92 MHz 64 codes and 3 encoding systems (Advanced Rolling Code, Rolling Code, Fixed Code | Removable terminal boards | Separate limit switch inputs for each motor | Open, close, step-by-step and pedestrian inputs | Separate opening-closing and closing photocell inputs | Stop input | Input for N.C. or 8K2 sensitive edge | Encoder Input for 24 Vdc hydraulic motors | Output for 12 Vdc electric lock | 2 outputs configurable as open gate indicator, second radio channel, courtesy light, zone light or photocell testing, flashing light, open gate alarm, NC input alarm | Output for connecting flashing light | Autoset of operating parameters | Separate electronic torque adjustment for each motor | Separate electronic speed adjustment for each motor | Anti-crushing safety through amperometric detection and encoder management | Separate slowdowns for each motor in opening and closing phases | Set up for connection to KNX systems via X.BE card (optional) | Designed for managing, configuring, diagnosing and updating firmware through the BeUP app, using the PRO.UP accessory | Advantouch system to configure parameters and manage radio transmitters | Number of manoeuvres | Programming access password | Maintenance warning | Built-in battery charger
