AUTOMATIC SLIDING DOOR

LUCE T

Operator for pedestrian access points with limited space on the side.

MyOne Automatic Door

telescopic sliding doors

telescopic sliding door 2 leaves max. weight 100+100 kg

telescopic sliding door 4 leaves max. weight 70+70+70+70 kg

DOWNLOAD THE PRODUCT SHEETS

LUCE T

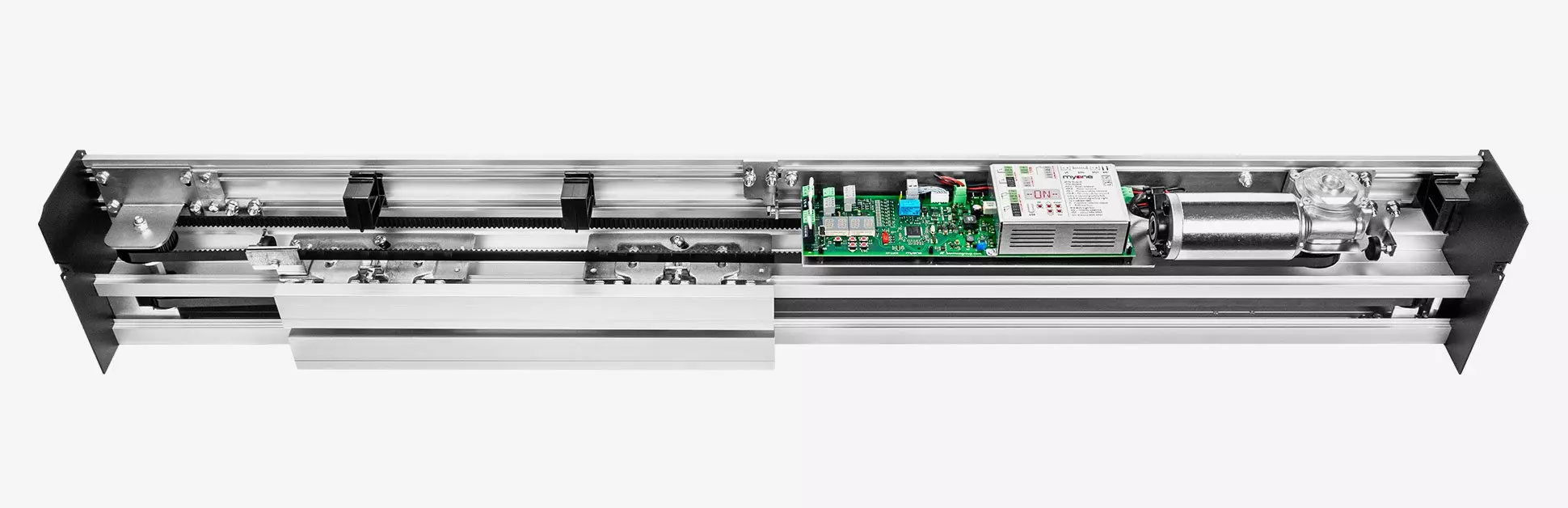

The Luce T telescopic sliding door operators are perfect for automating locations where there is limited space to the side of the passage. Available in two-leaf (100+100 kg) or four-leaf (70+70+70+70 kg) versions. Operator for sliding doors with three-wheeled carriages, which ensures that the doors are very stable and easy to adjust, both in height and depth. The operator has a control unit with LED alphanumeric display, full-range switching power supply (100-240 V 50/60 Hz) and battery charger. The presence of a USB connector makes it quick and easy to update the firmware as well as to copy parameters and operating logics to a new system instantly. Continuous operation guaranteed.
TECHNICAL DATA
Power supply
full range 100-240 Vac | 50/60 Hz
Power consumption
70 W
Power consumption in stand-by
3 W
Accessories power supply
24 Vdc = / 1 A max
Maximum speed 2 doors
0,8 m/s
Maximum speed 4 doors
1,6 m/s
Maximum load 2 doors
100 + 100 kg
Maximum load 4 doors
70 + 70 + 70 + 70 kg
Type and frequency of use
continuous operation = 100%
Operating temperature
-15°C / +50°C
Protection level
IP20
Data backup memory
USB flash drive
