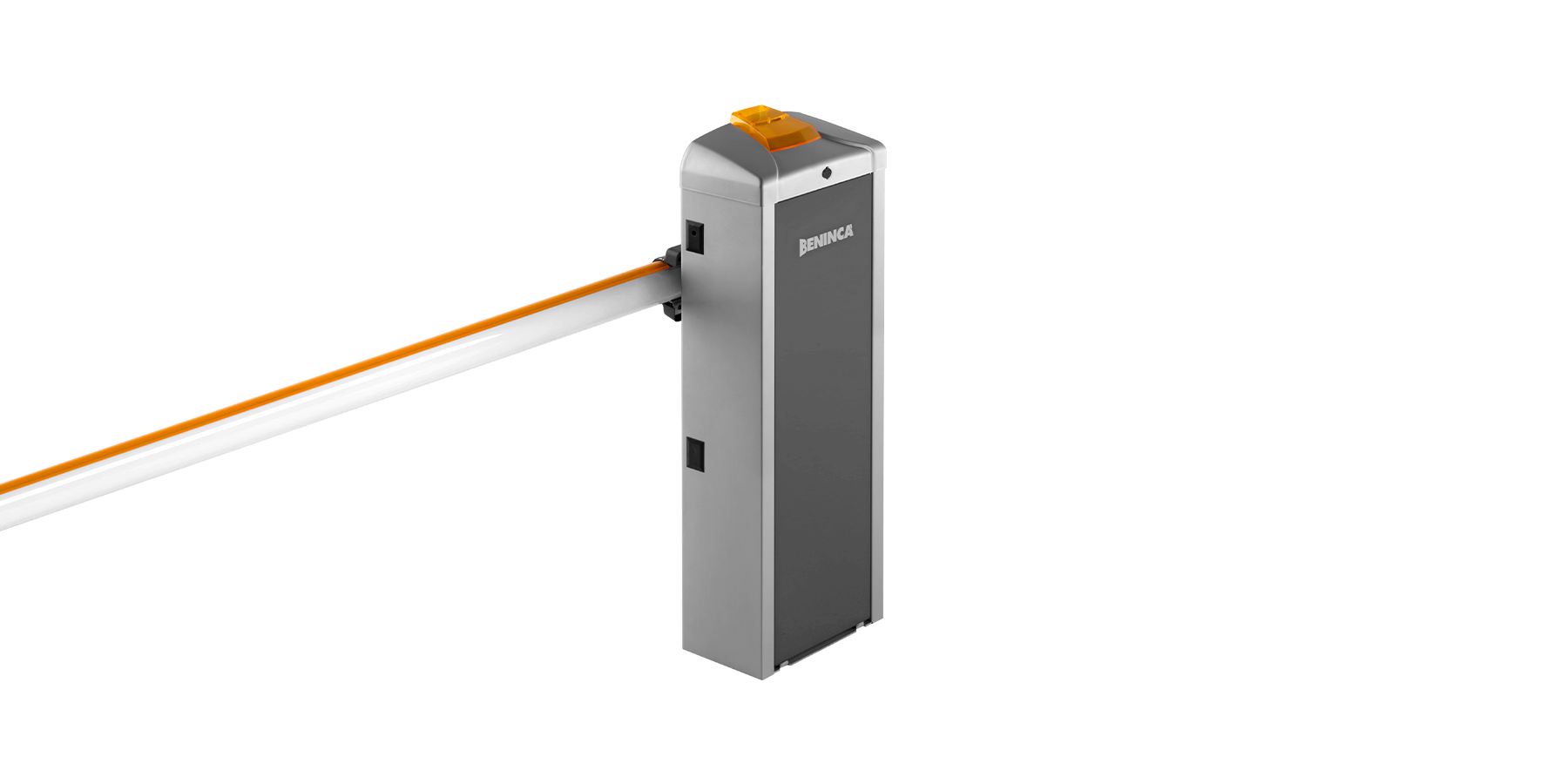

24 Vdc barrier for intensive use with integrated control unit, encoder and battery charger
24 Vdc
For passages up to 8.0 m

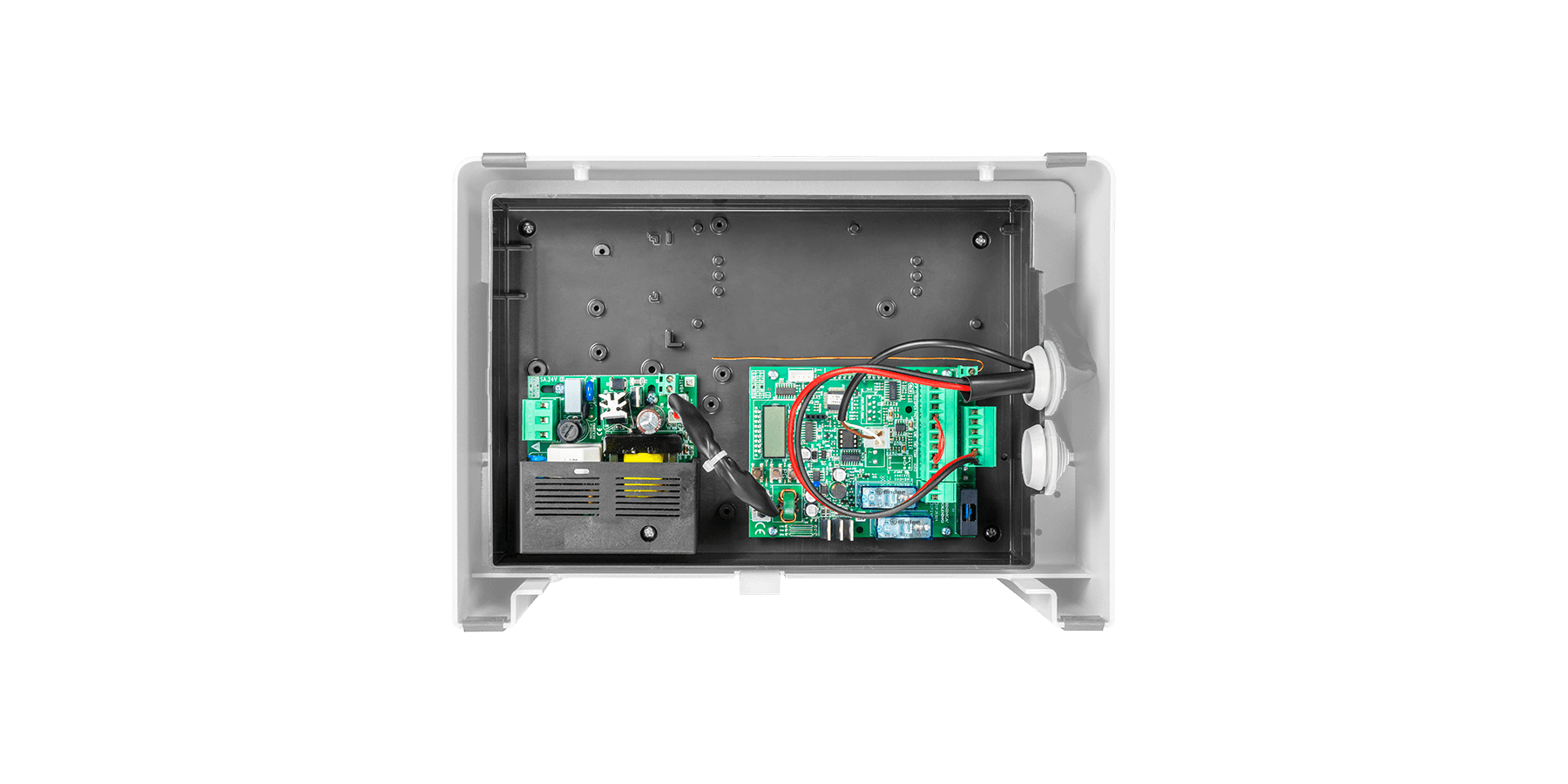

Control unit that manages the encoder for maximum precision during the automation manoeuvring steps
Intelligent power control system that allows obtaining dynamic data through a precise calculation of the thrust. The system is able to locate any critical points and adjust the torque accordingly in relation to actual requirements and according to measured performance
64 transmitters storable inside the receiver
24 Vdc | intensive use
24 Vdc barrier for intensive use with integrated control unit, encoder and battery charger | Switching power supply 100÷250 Vac which reduces energy consumption and ensures a long lifespan of the actuator | Integrated absolute encoder, which ensures greater precision in slowdowns and advanced control of the boom movement so that it never loses the reference position of the boom even if there is a power cut or the automatic device is released | Integrated STC System for precise torque calculation | Easy installation and possibility of quick connection for operation of opposed barriers, thanks to the SIS accessory board | LED.AL8 arm lights with adjustable intensity | Reduced energy use on stand-by | Possibility to install FTC.S photocells using concealed system so that they are perfectly integrated | Integrated flashing lamp (requires EVA.LAMP accessory) | Available in right or left version
Foundation plate not included
APPLICATION
1 road barrier series EVA.5, EVA.7, EVA.8
CONTROL UNIT POWER SUPPLY
100 ÷ 250 Vac - 50/60 Hz
MOTORS POWER SUPPLY
24 Vdc / 10 A
MAIN FUNCTIONS
Integrated LCD display | Integrated 433.92 MHz 64-code radio receiver with 3 encoding systems (Advanced Rolling Code, Rolling Code, Fixed Code) | Absolute encoder management | Removable terminal boards | Automatic, semi-automatic and deadman’s logic | Motor limit switch inputs | Open, close, step by step, photocell and stop inputs | Output for LED.ALx accessory, integrated LED on arm | Output configurable as open barrier indicator light, second radio channel of incorporated receiver, arm light, service light, photocell test or maintenance indicator | Output for connecting flashing light | Predesigned for the operation of opposed barriers with SIS synchronisation board (optional) | Autosetting of operation parameters | Electronic torque adjustment with automatic calculation for each point in the stroke (STC SYSTEM) | Anti-crushing safety thanks to amperometric obstacle detection | Adjustable slow-downs | Number of maneuvers | Programming access password | Maintenance warning | Integrated battery charger, compatible with battery models DA.BT2/DA.BT6
