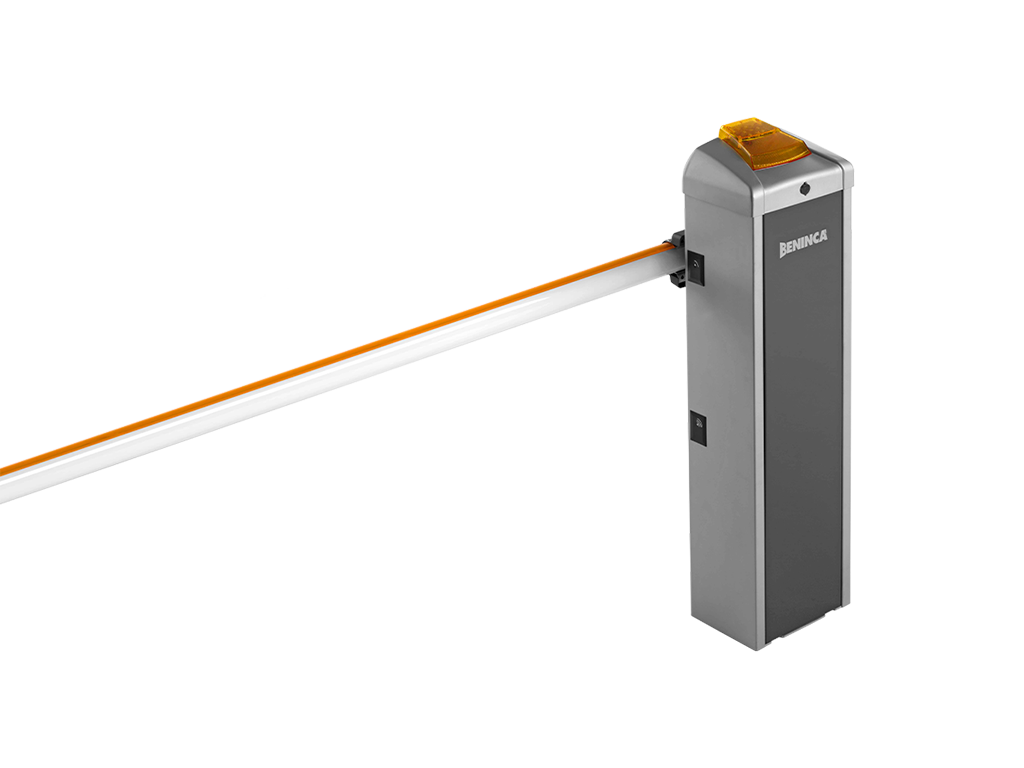

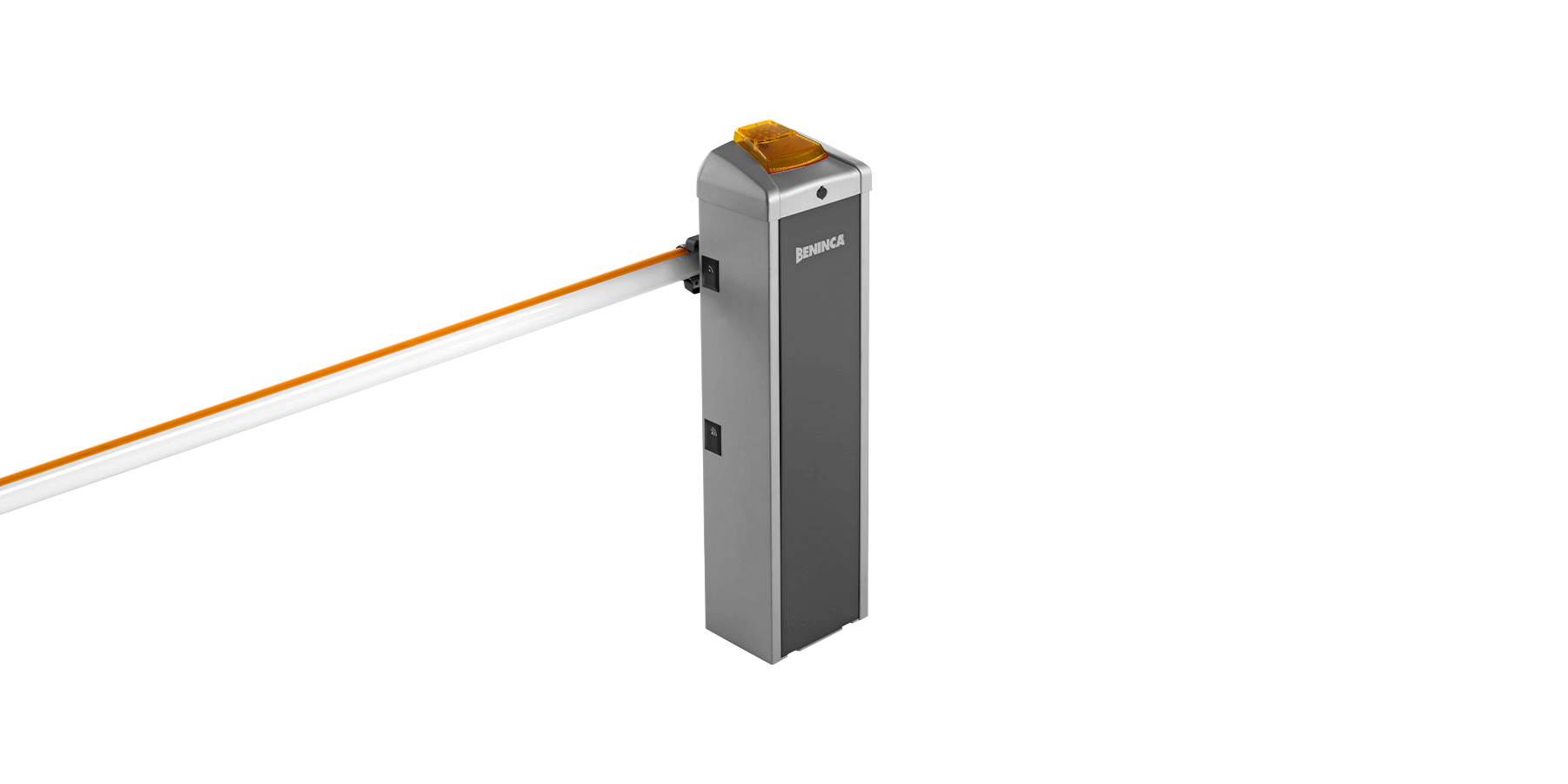

EVA.5

24 Vdc

For passages up to 5.0 m

Control unit that manages the encoder for maximum precision during the automation manoeuvring steps

Intelligent power control system that allows obtaining dynamic data through a precise calculation of the thrust. The system is able to locate any critical points and adjust the torque accordingly in relation to actual requirements and according to measured performance

64 transmitters storable inside the receiver

DOWNLOAD THE PRODUCT SHEETS

24 Vdc | intensive use

24 Vdc barrier for intensive use with integrated control unit, encoder and battery charger | Switching power supply 100÷250 Vac which reduces energy consumption and ensures a long lifespan of the actuator | Integrated absolute encoder, which ensures greater precision in slowdowns and advanced control of the boom movement so that it never loses the reference position of the boom even if there is a power cut or the automatic device is released | Integrated STC System for precise torque calculation | Easy installation and possibility of quick connection for operation of opposed barriers, thanks to the SIS accessory board | LED.AL5 arm lights with adjustable intensity | Reduced energy use on stand-by | Possibility to install FTC.S photocells using concealed system so that they are perfectly integrated | Integrated flashing lamp (requires EVA.LAMP accessory)

Foundation plate not included
